VNG Series Constant Voltage 24V IP20 On-off Driver LED Driver
VNG series is widely used DC constant voltage input LED driver, with stable and high efficiency output voltage and output current, high power factor and low THD power supply advantages. Its design ultra-thin, small, with a full range of reliable drivers protection features, which meets various needs and European safety standards.
- Flicker free, PF>0.9
- Protection class II
- Stand by power less than 0.5W
- Lifespan 50,000 h
- Surge: IEC/EN61000-4-5(L-N:2KV)
- Adopting dual flicker-free solution
- Protective features (short-circuit protection, no-load protection, over temperature protection, overload protection)
- Compatible with 0.75-2.5mm² cable. For 1.5-2.5mm² cable, please cut the ribs at the pressing line position for assembly
Specifications

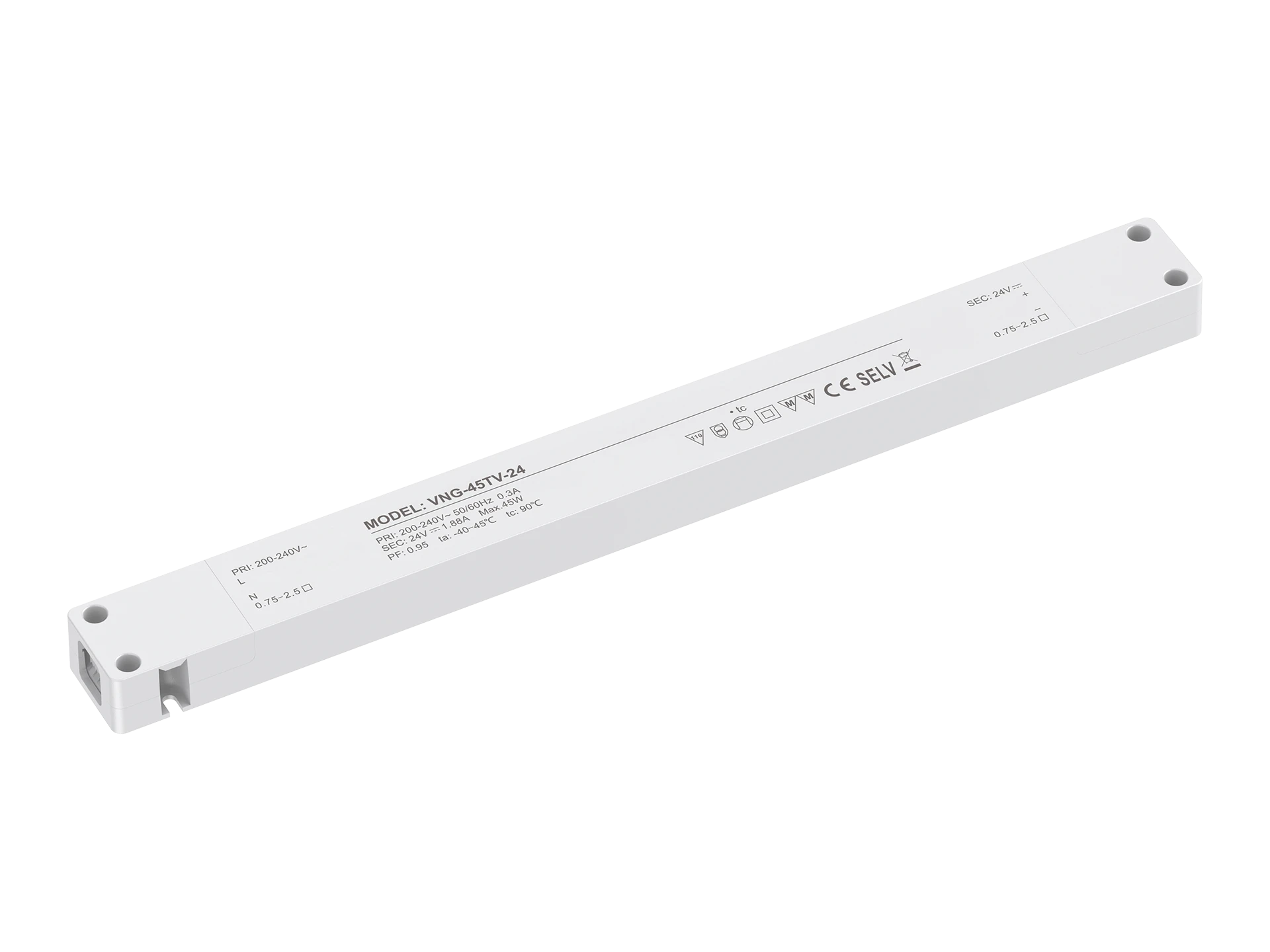

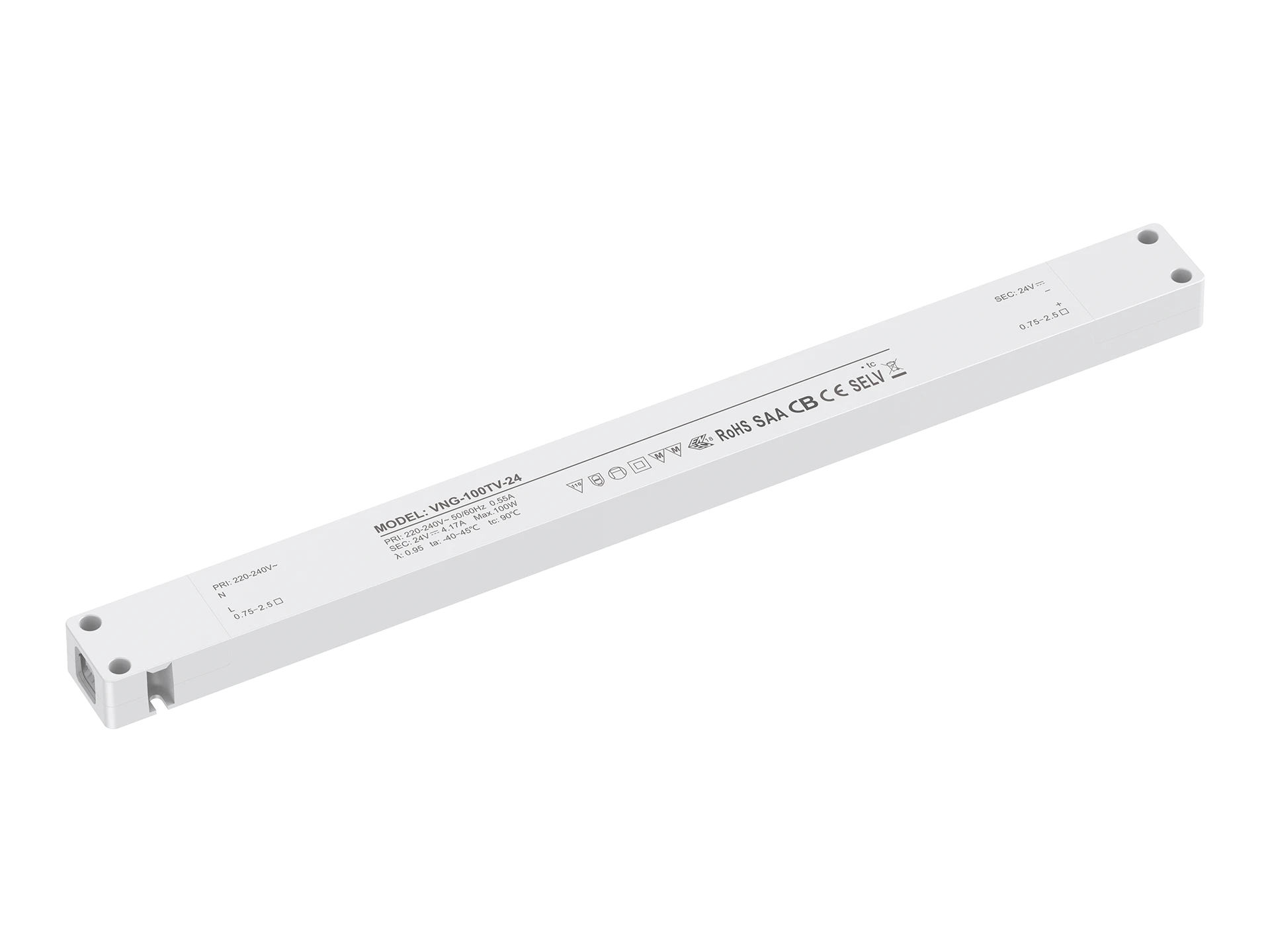

| Code | VNG-45TV-24 | VNG-75TV-24 | VNG-100TV-24 | VNG-150TV-24 |
|---|---|---|---|---|
| Input Power | 45W | 75W | 100W | 150W |
| Input Voltage | AC220-240V/47-63Hz | AC220-240V/50/60Hz | AC220-240V/50/60Hz | AC220-240V/50/60Hz |
| Output Voltage | DC24V | DC24V | DC24V | DC24V |
| Output Current | 0-1880mA | 0-3200mA | 0-4170mA | 0-6250mA |
| Efficiency | ≥87% | ≥92% | ≥92% | ≥93% |
| Power Factor | 0.9 | 0.95 | 0.95 | 0.96 |
| THD | <20% @230V | <20% @230V | <20% @230V | <20% @230V |
| Flickering Index | 1% (NO RISK) | 1% (NO RISK) | 1% (NO RISK) | 1% (NO RISK) |
