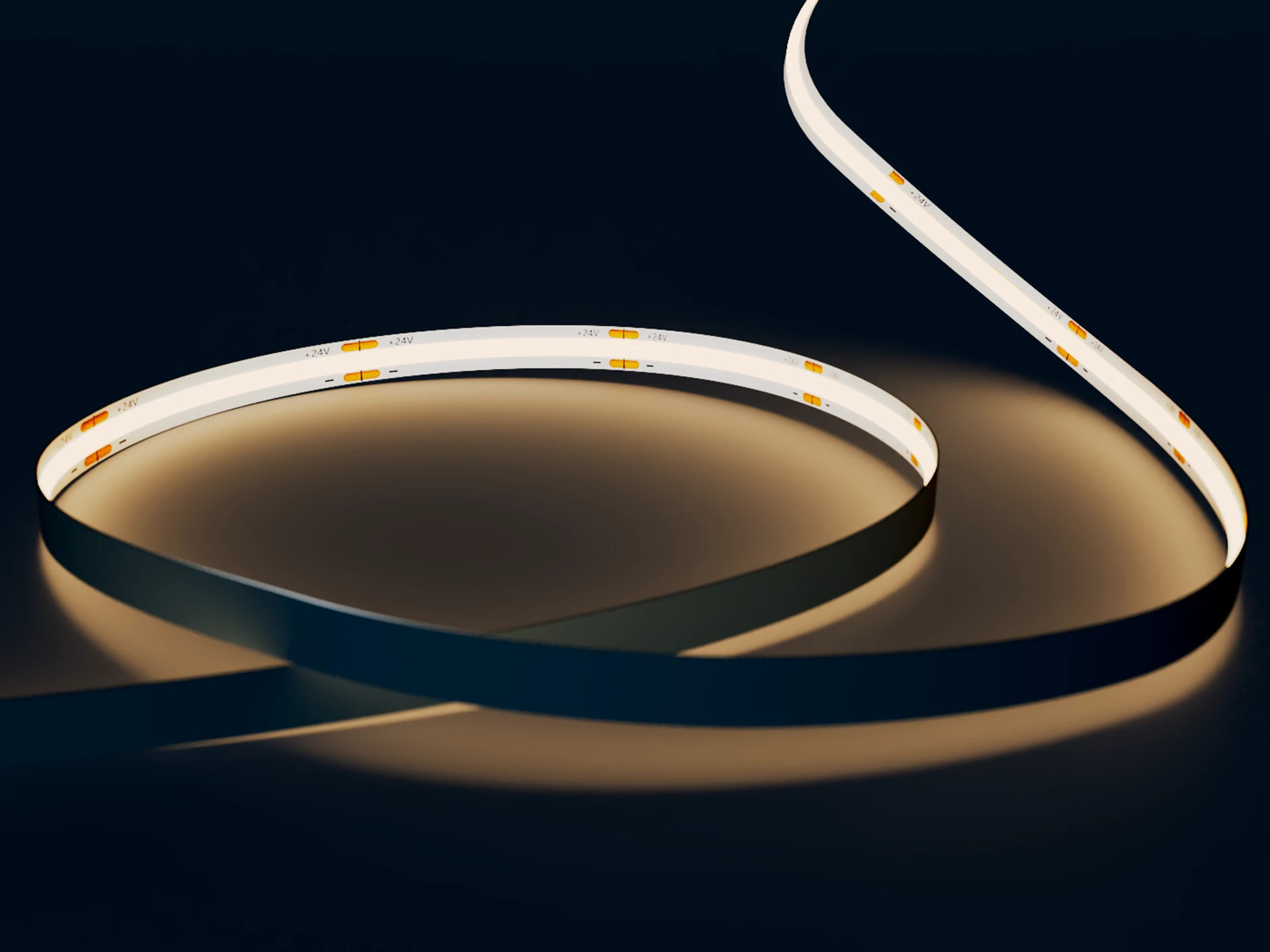

ST218 Series, 288LED/M, 5-15W/M, 1CCT, 27.77mm CUT, IP20, DOB LED Strip Light
It is suitable for supermarket, specialty store, show window, exhibition hall; focus lighting, decorative and background lighting, where attention is focused on subjects to emphasize special visual points.
- With soft and uniform lighting effect, dot free.
- IP20 protection level available.
- The appropriate length can be selected according to the minimum cutting distance.
- Cutable for flexible application free cut.
- High luminous efficacy: 110-130LM/W
Specifications
| Product Code | Led Qty | IP grade | PCB width | Power(W) | Color Temperature | Lumen/M | Lumen/W | CRI | Voltage | Voltage range | Reverse Voltage | Length/Reel | Min cut | Beam angle | Working Temperature | Storage Temperature | SDCM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ST218-24P0-DOB-288D-5W-M | 288 | IP20 | 10mm | 5W/M | 2700K | 585 lm | 117 lm | ≥90 | DC24V | DC 23V-25V | DC25V | 5M | 27.77mm | 140° | -25~45°C | -40~65°C | ≤3 |
| 3000K | 600 lm | 120 lm | |||||||||||||||
| 4000K | 635 lm | 127 lm | ≤5 | ||||||||||||||
| 6500K | 635 lm | 127 lm | |||||||||||||||
| ST218-24P0-DOB-288D-8W-M | 8W/M | 2700K | 936 lm | 117 lm | ≤3 | ||||||||||||
| 3000K | 960 lm | 120 lm | |||||||||||||||
| 4000K | 1016 lm | 127 lm | ≤5 | ||||||||||||||
| 6500K | 1016 lm | 127 lm | |||||||||||||||
| ST218-24P0-DOB-288D-15W-M | 15W/M | 2700K | 1755 lm | 117 lm | ≤3 | ||||||||||||
| 3000K | 1800 lm | 120 lm | |||||||||||||||
| 4000K | 1905 lm | 127 lm | ≤5 | ||||||||||||||
| 6500K | 1905 lm | 127 lm |
