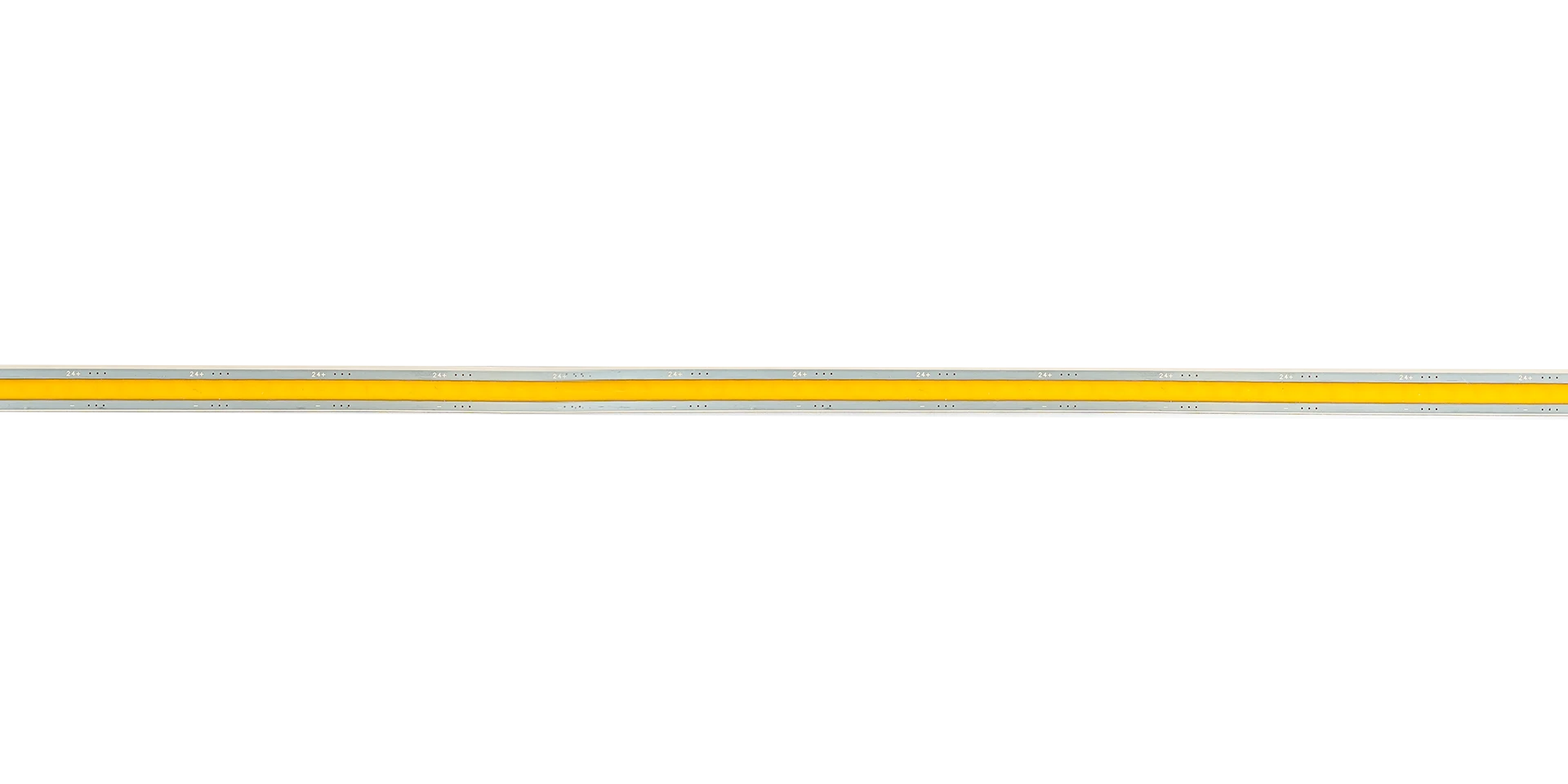

ST210 Series, 1000LED/M, 10W/M, 1CCT, Free CUT, IP67, Single Color LED Strip Light
It is suitable for supermarket, specialty store, show window, exhibition halls; focus lighting, decorative and background lighting, where attention is focused on subjects to emphasize special visual points.
- Wide angle with soft and uniform light, dot free.
- Free cut, cut anywhere for more flexible application.
- IP67 protection level available.
- Cutable for flexible application
- 1000 LED/M, 10W/M, 140° beam angle
- CRI>90, back to nature color
- SDCM<5 to ensure color consistency
Specifications
| Product Code | Led Qty | IP grade | PCB width | Power(W) | Color Temperature | Lumen/M | Lumen/W | CRI | Voltage | Voltage range | Reverse Voltage | Length/Reel | Min cut | Beam angle | Working Temperature | Storage Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ST210-24P7TV-COB-1000D-10W-M | 1000 | IP67 | 8mm | 10W/M | 2000K | 800lm | 80lm | CRI90 | DC24V | DC 23V-25V | DC25V | 10m/5m | Free cut | 140° | -25~45°C | -40~65°C |
| 2700K | 880lm | 88lm | ||||||||||||||
| 3000K | 880lm | 88lm | ||||||||||||||
| 3500K | 880lm | 88lm | ||||||||||||||
| 4000K | 920lm | 92lm | ||||||||||||||
| 6500K | 920lm | 92lm |
