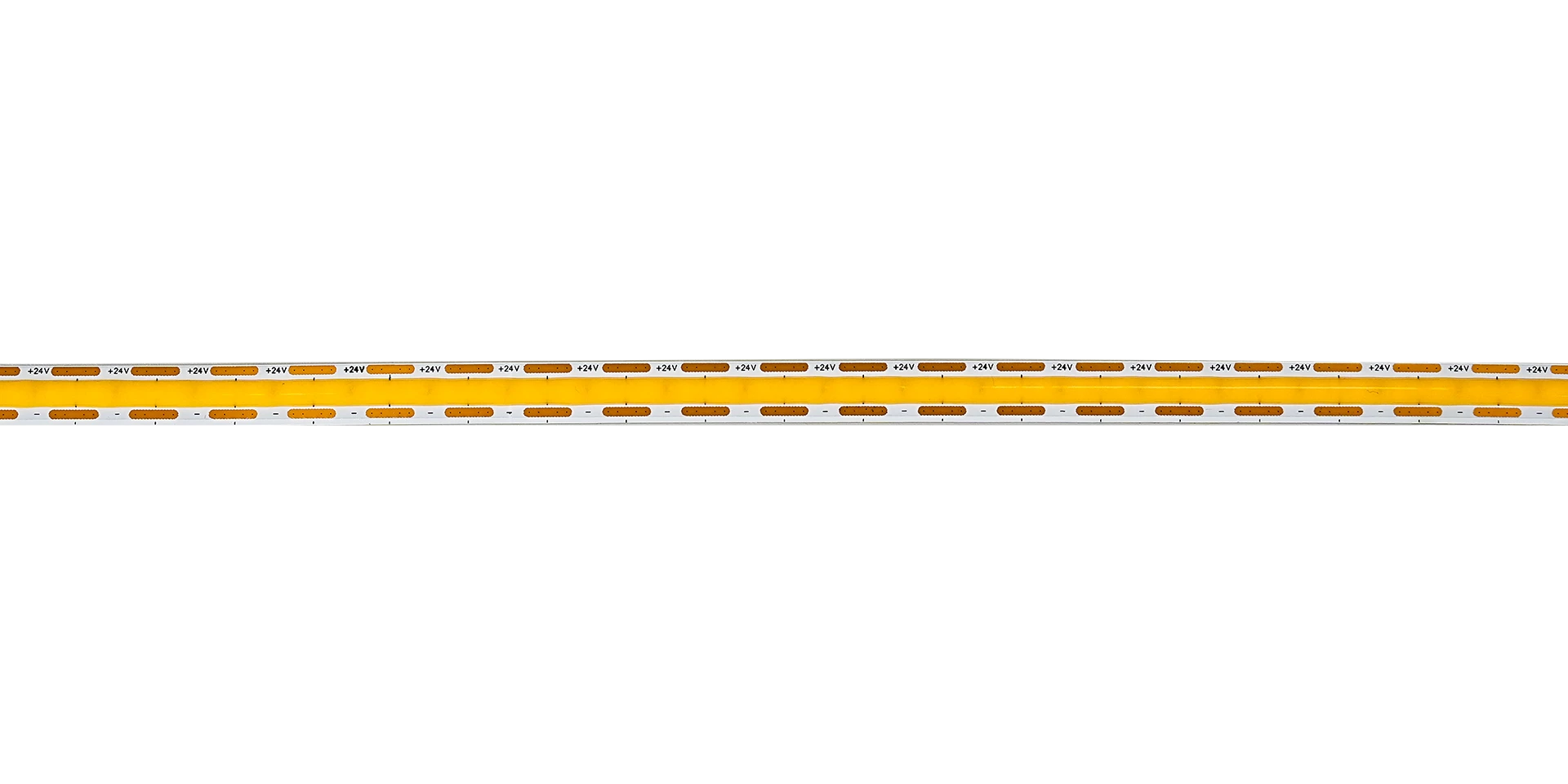

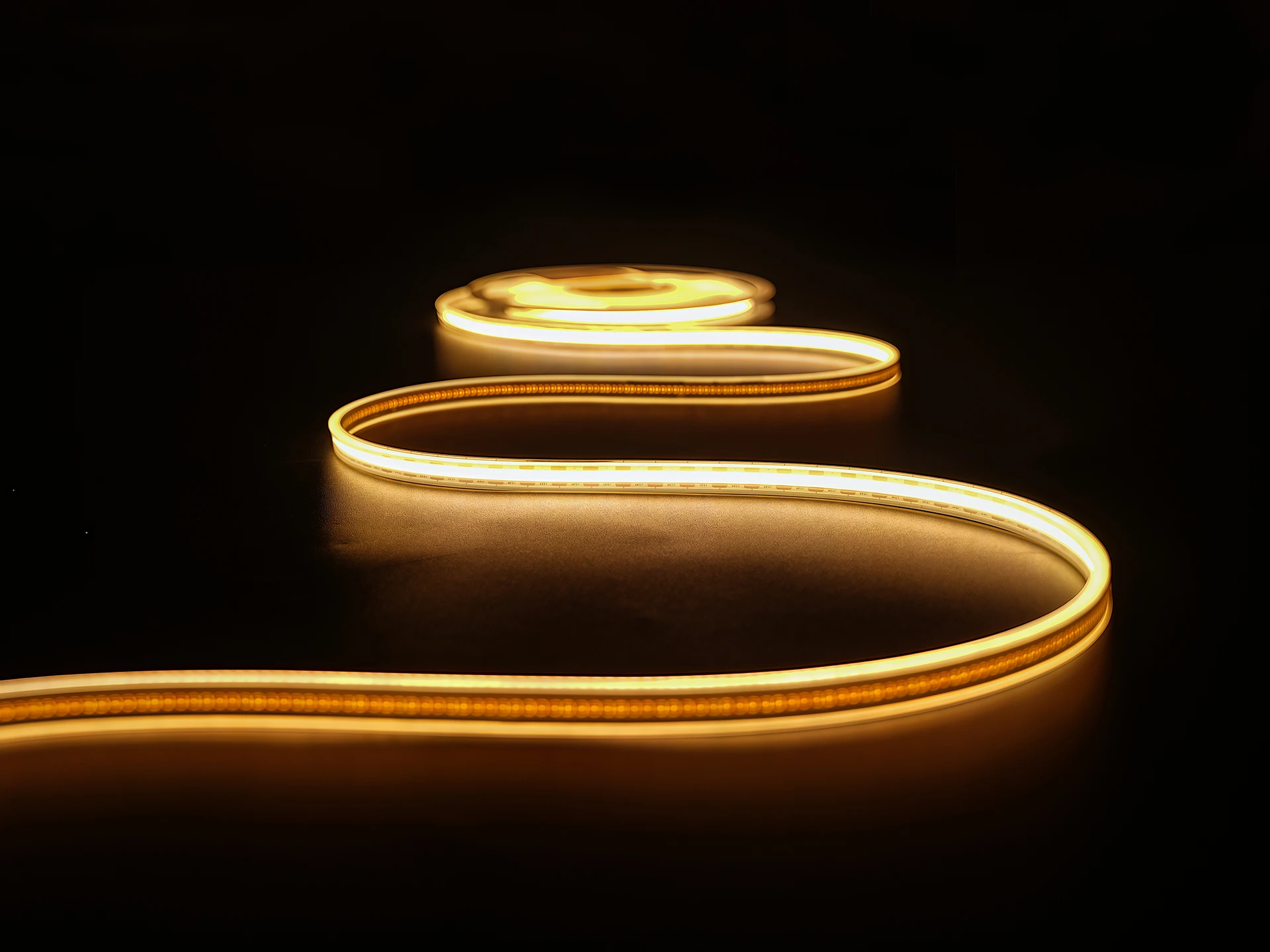

ST205 Series, 400LED/M, 8W/M, 1CCT, 10mm CUT, IP65, Single Color LED Strip Light
It is suitable for supermarket, specialty store, show window, exhibition halls; focus lighting, decorative and background lighting, where attention is focused on subjects to emphasize special visual points.
- With soft and uniform lighting effect
- IP65 protection level available.
- Cutable for flexible application
- 400 LED/M, 8W/M, 140° beam angle
- CRI>90, back to nature color
- SDCM<5 to ensure color consistency
IP65
RECYCLE
NO UV/IR
CE
ROHS
180°
Specifications
| Product Code | Led Qty | IP grade | PCB width | Power(W) | Color Temperature | Lumen/M | Lumen/W | CRI | Voltage | Voltage range | Reverse Voltage | Length/Reel | Min cut | Beam angle | Working Temperature | Storage Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ST205-24P5TV-COB-400D-8W-M | 400 | IP65 | 8mm | 8W/M | 2000K | 760 lm | 95 lm | CRI90 | DC24V | DC 23V-25V | DC25V | 5M | 10mm | 140° | -25~45°C | -40~65°C |
| 2700K | 776 lm | 97 lm | ||||||||||||||
| 3000K | 800 lm | 100 lm | ||||||||||||||
| 3500K | 856 lm | 107 lm | ||||||||||||||
| 4000K | 848 lm | 106 lm | ||||||||||||||
| 6500K | 880 lm | 110 lm |
