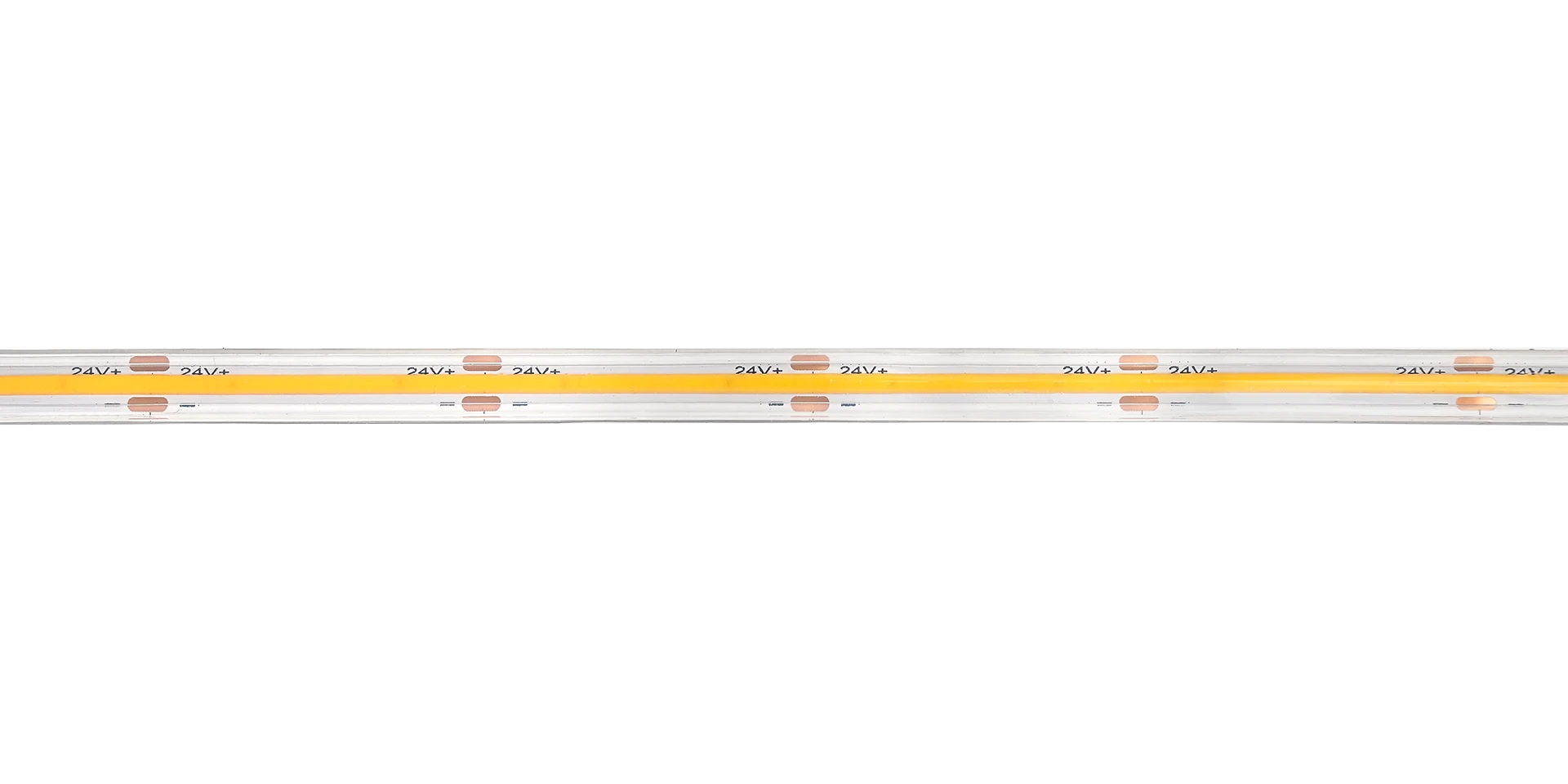

ST202 Series, 640LED/M, 15W/M, 1CCT, 50mm CUT, IP65, Single Color LED Strip Light
It is suitable for supermarket, specialty store, show window, exhibition halls; focus lighting, decorative and background lighting, where attention is focused on subjects to emphasize special visual points.
- Wide angle with soft and uniform light, dot free.
- IP65 protection level available.
- Cutable for flexible application
- 640 LED/M, 15W/M, 140° beam angle
- CRI>90,back to nature color
- SDCM<5 to ensure color consistency
IP65
RECYCLE
NO UV/IR
CE
ROHS
180°
Specifications
| Product Code | Led Qty | IP grade | PCB width | Power(W) | Color Temperature | Lumen/M | Lumen/W | CRI | Voltage | Voltage range | Reverse Voltage | Length/Reel | Min cut | Beam angle | Working Temperature | Storage Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ST202-24P5TV-COB-640D-15W-M | 640 | IP65 | 10mm | 15W/M | 2000K | 1395 lm | 93 lm | CRI90 | DC24V | DC 23V-25V | DC25V | 5M | 50mm | 140° | -25~45°C | -40~65°C |
| 2700K | 1425 lm | 95 lm | ||||||||||||||
| 3000K | 1470 lm | 98 lm | ||||||||||||||
| 3500K | 1530 lm | 102 lm | ||||||||||||||
| 4000K | 1620 lm | 108 lm | ||||||||||||||
| 6500K | 1620 lm | 108 lm |
