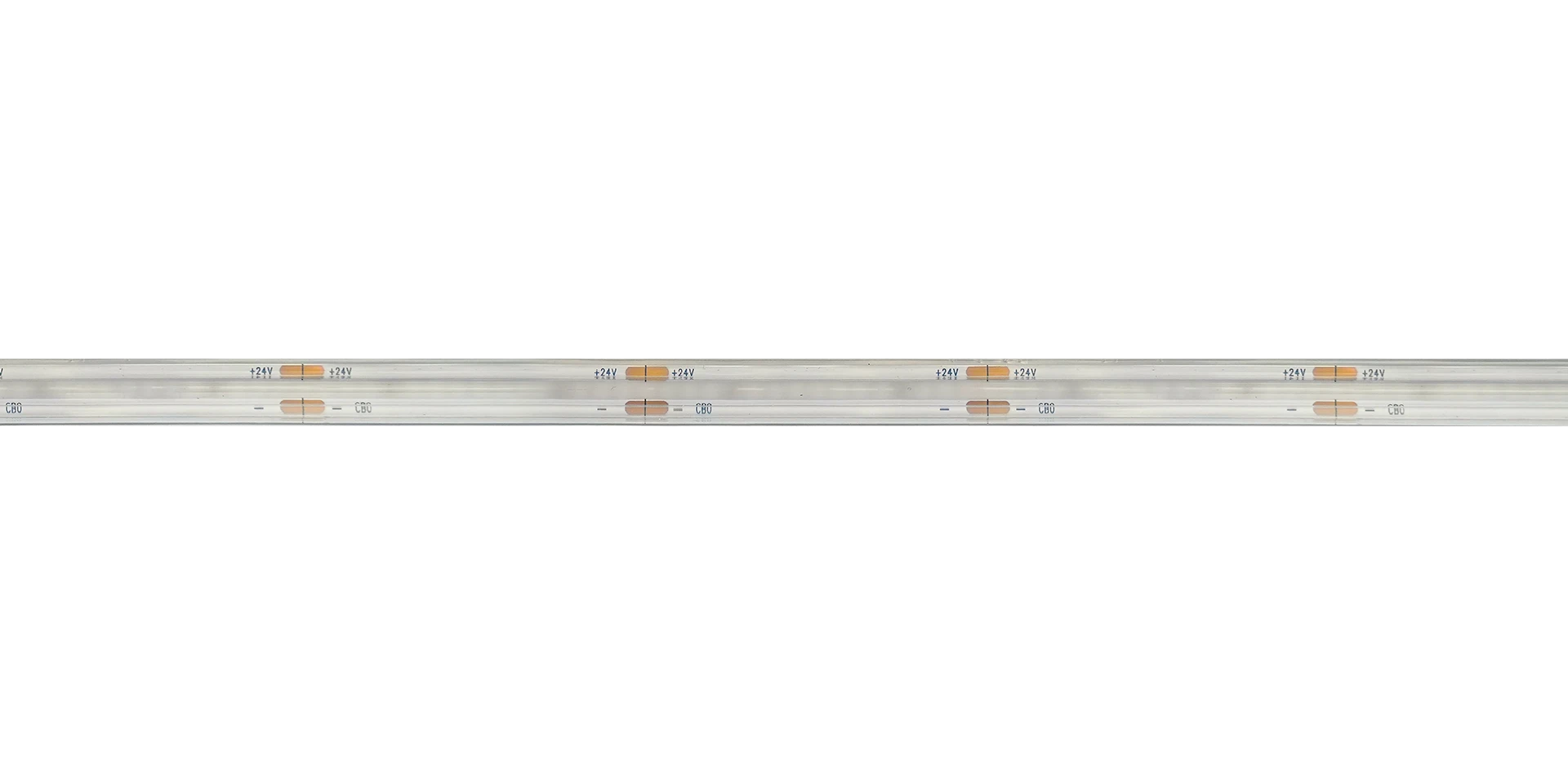

ST201 Series, 320LED/M, 10W/M, RGB, 50mm CUT, IP65, Single Colour RGB LED Strip Light
It is suitable for supermarket, specialty store, show window, exhibition halls; focus lighting, decorative and background lighting, where attention is focused on subjects to emphasize special visual points.
- With soft and uniform lighting effect
- IP65 protection level available.
- Cutable for flexible application
- 320 LED/M, 10W/M, 140° beam angle
- CRI>90,back to nature color
- SDCM<5 to ensure color consistency
IP65
RECYCLE
NO UV/IR
CE
ROHS
140°
Specifications
| Product Code | Led Qty | IP grade | PCB width | Power(W) | Color | Emission band | Voltage | Voltage range | Reverse Voltage | Length/Reel | Min cut | Beam angle | Working Temperature | Storage Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ST201-24P5TV-COBR-320S-10W-M | 320 | IP65 | 8mm | 10W/M | Red | 620-630nm | DC24V | DC 23V-25V | DC25V | 5M | 50mm | 140° | -25~45℃ | -40~65°℃ |
| ST201-24P5TV-COBG-320S-10W-M | Green | 520-530nm | ||||||||||||
| ST201-24P5TV-COBB-320S-10W-M | Blue | 450-460nm |
