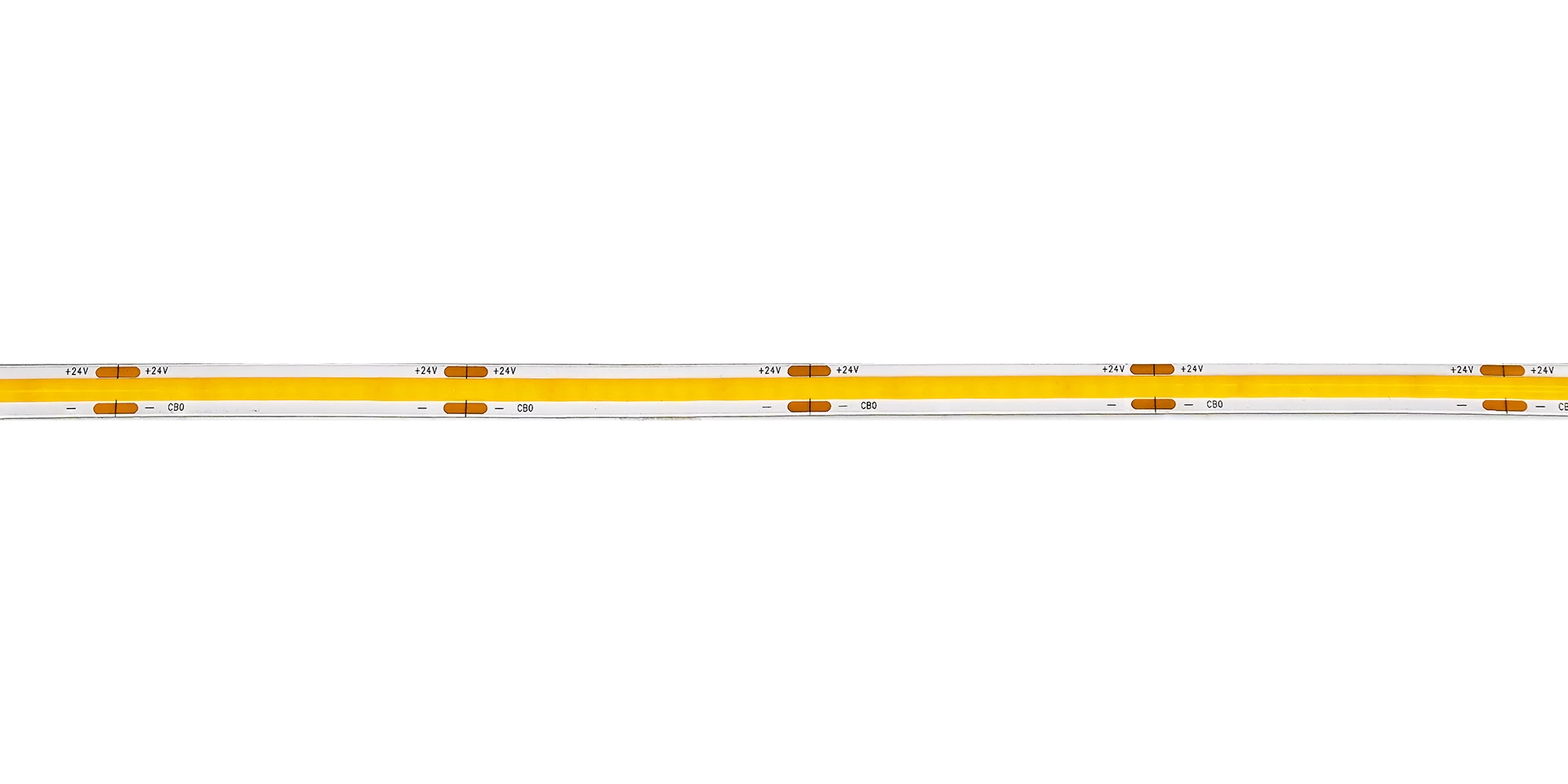

ST201 Series, 320LED/M, 10W/M, 1CCT, 50mm CUT, IP20, Single Color LED Strip Light
It is suitable for supermarket, specialty store, show window, exhibition halls; focus lighting, decorative and background lighting, where attention is focused on subjects to emphasize special visual points.
- With soft and uniform lighting effect
- IP20 protection level available.
- Cutable for flexible application
- 320 LED/M, 10W/M, 180° beam angle
- CRI>90,back to nature color
- SDCM<5 to ensure color consistency
IP20
RECYCLE
NO UV/IR
CE
ROHS
140°
Specifications
| Product Code | Led Qty | IP grade | PCB width | Power(W) | Color Temperature | Lumen/M | Lumen/W | CRI | Voltage | Voltage range | Reverse Voltage | Length/Reel | Min cut | Beam angle | Working Temperature | Storage Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ST201-24P0TV-COB-320S-10W-M | 320 | IP20 | 8mm | 10W/M | 2000K | 980 lm | 98 lm | CRI90 | DC24V | DC 23V-25V | DC25V | 10M/5M | 50mm | 180° | -25~45°C | -40~65°C |
| 2700K | 1000 lm | 100 lm | ||||||||||||||
| 3000K | 1050 lm | 105 lm | ||||||||||||||
| 3500K | 1050 lm | 105 lm | ||||||||||||||
| 4000K | 1100 lm | 110 lm | ||||||||||||||
| 6500K | 1150 lm | 115 lm |
