CV-DSI Series Constant Voltage 24V IP20 Triac/Phase-Cut Dimming LED Driver
CV-DSI series LED flicker free driver is constant voltage triac dimming driver with advantages of smooth dimming, low noise, high PF and high reliability. It is well compatible with leading and trailing edge dimmers. Adopts terminal design which is compatible with 0.75-2.5mm² wiring requirements.
- Flicker free
- Triac/ Phase-Cut Dimming Driver
- Nominal life-time up to 50,000h
- Temperature protection as per EN / IEC61347
- DALI signal:16 bit Manchester Code Speed 1 % to 100 %
- Support EL emergency function
- Protective features (shortcircuit protection, over voltage protection, over temperature protection, overload protection)
Specifications

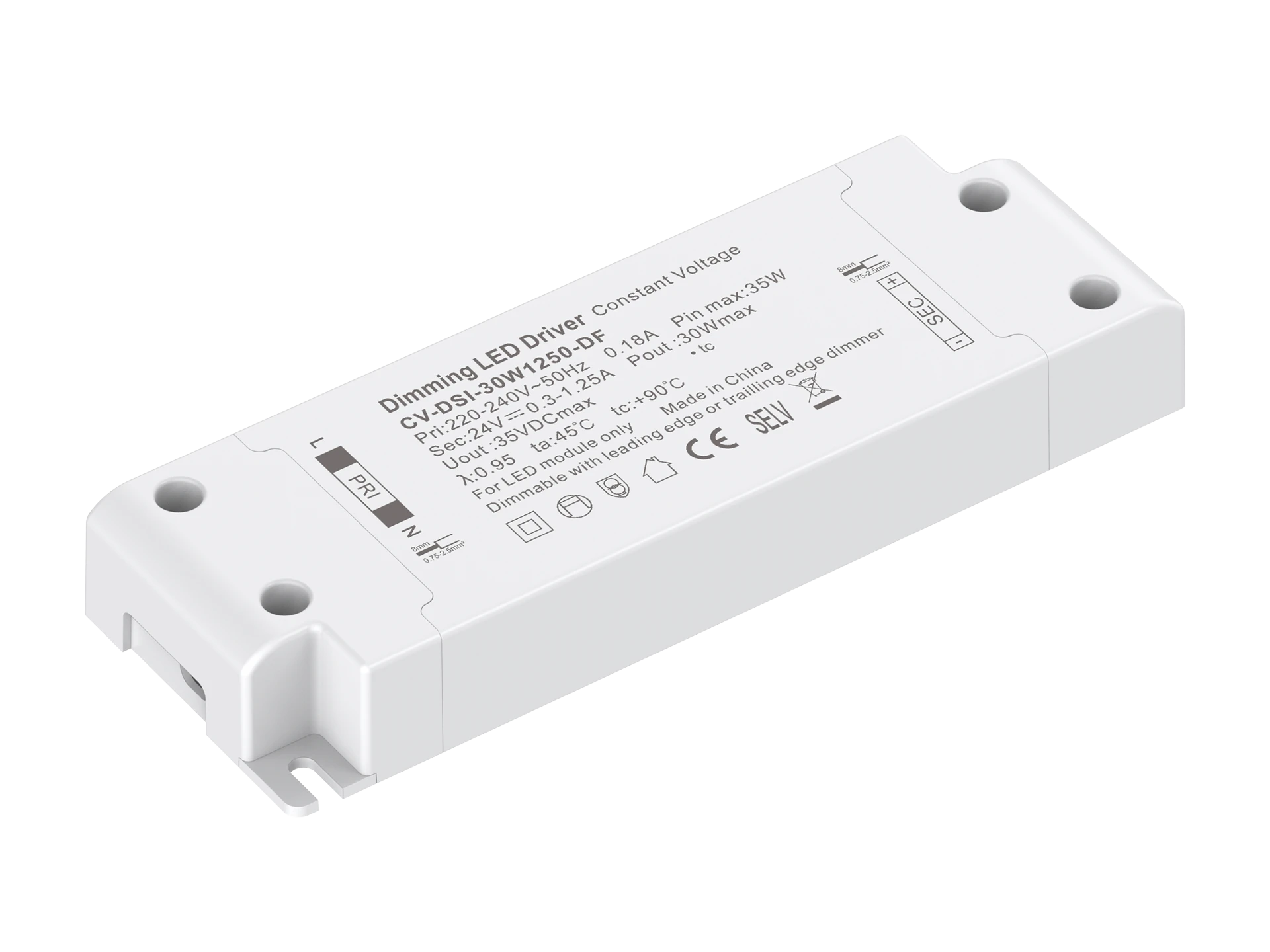

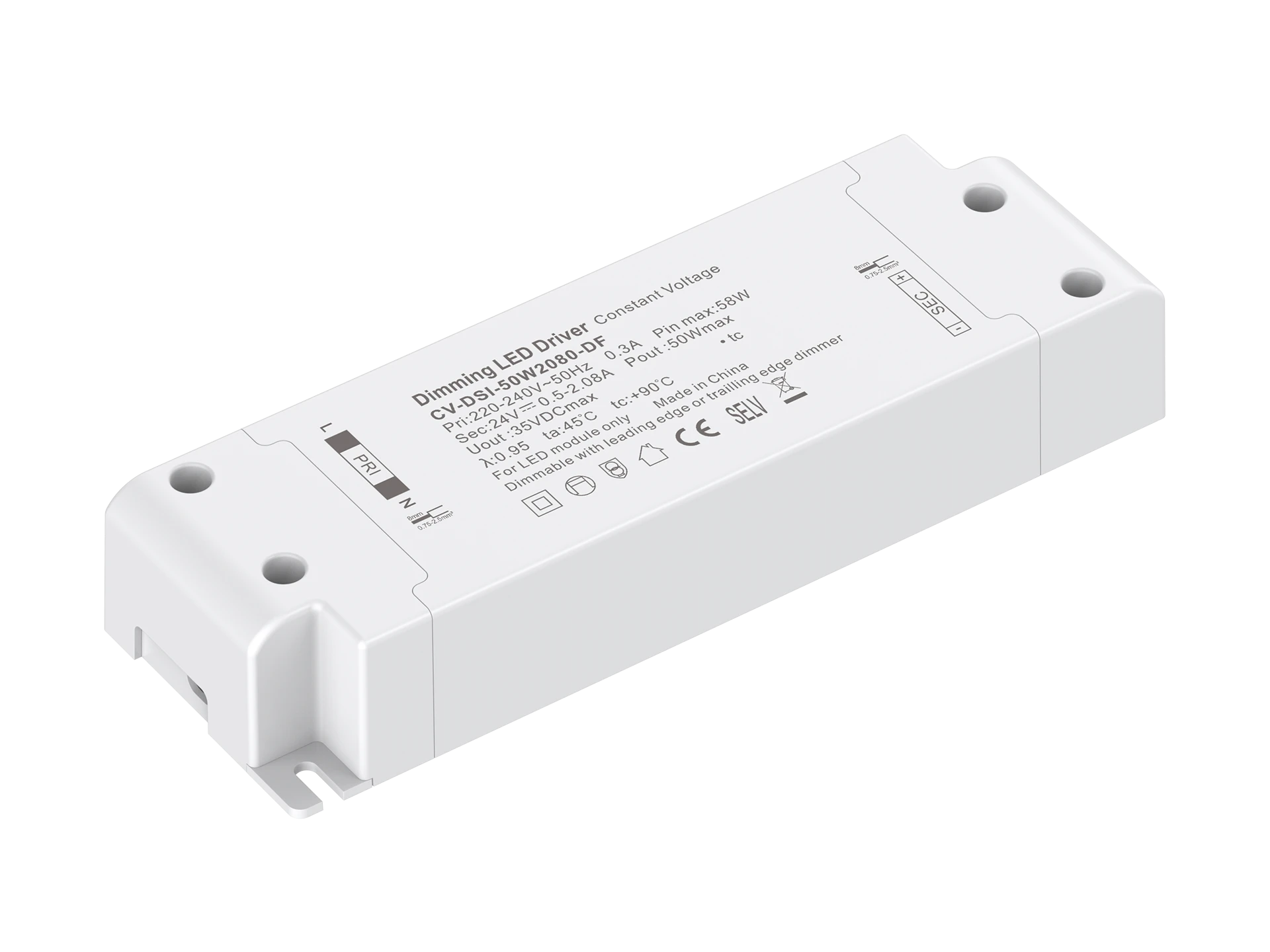

| Code | CV -DSI-30W1250-DF | CV-DSI-50W2080-DF | CV-DSI-100W4200-DF |
|---|---|---|---|
| Input Power | 35Wmax | 58Wmax | 110Wmax |
| Input Voltage | AC220-240V/50Hz | AC220-240V/50Hz | AC220-240V/50Hz |
| Output Voltage | DC24V | DC24V | DC24V |
| Output Current | 0.3-1.25A | 0.5-2.08A | 1-4.2A |
| Efficiency | ≥84% | ≥85%( | ≥90%( |
| Power Factor | 0.95 | 0.95 | 0.95 |
| THD | <20% @230V | <20% @230V | <20% @230V |
| Flickering Index | 5% (NO RISK) | 5% (NO RISK) | 5% (NO RISK) |
