CV-DSI Series Constant Voltage 24V IP20 DALI DT6 Dimming LED Driver

CV-DSI series LED flicker free driver is constant voltage DALI dimming driver. With a focus on applicationrelated functions, the LED Driver range offers good quality and performance that ensures reliable operation of LED module.

  • Flicker free
  • Support DALI-2+pushDIM interface
  • Nominal life-time up to 50,000h
  • Temperature protection as per EN / IEC61347
  • DALI signal:16 bit Manchester Code Speed 1 % to 100 %
  • Support EL emergency function
  • Protective features (shortcircuit protection, over voltage protection, over temperature protection, overload protection)
RGB COB strip overview

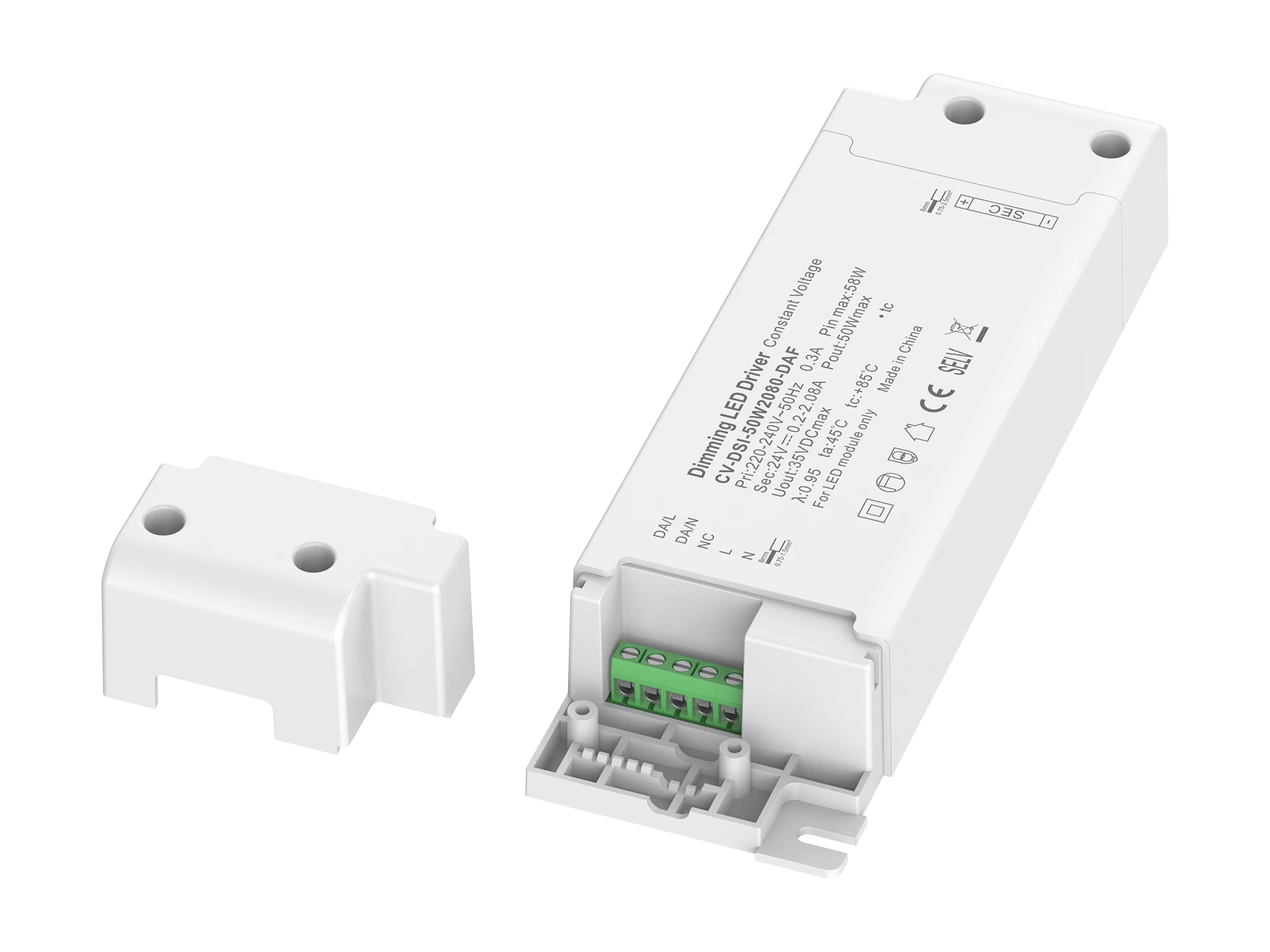

CV DSI 50W2080 DAF 2

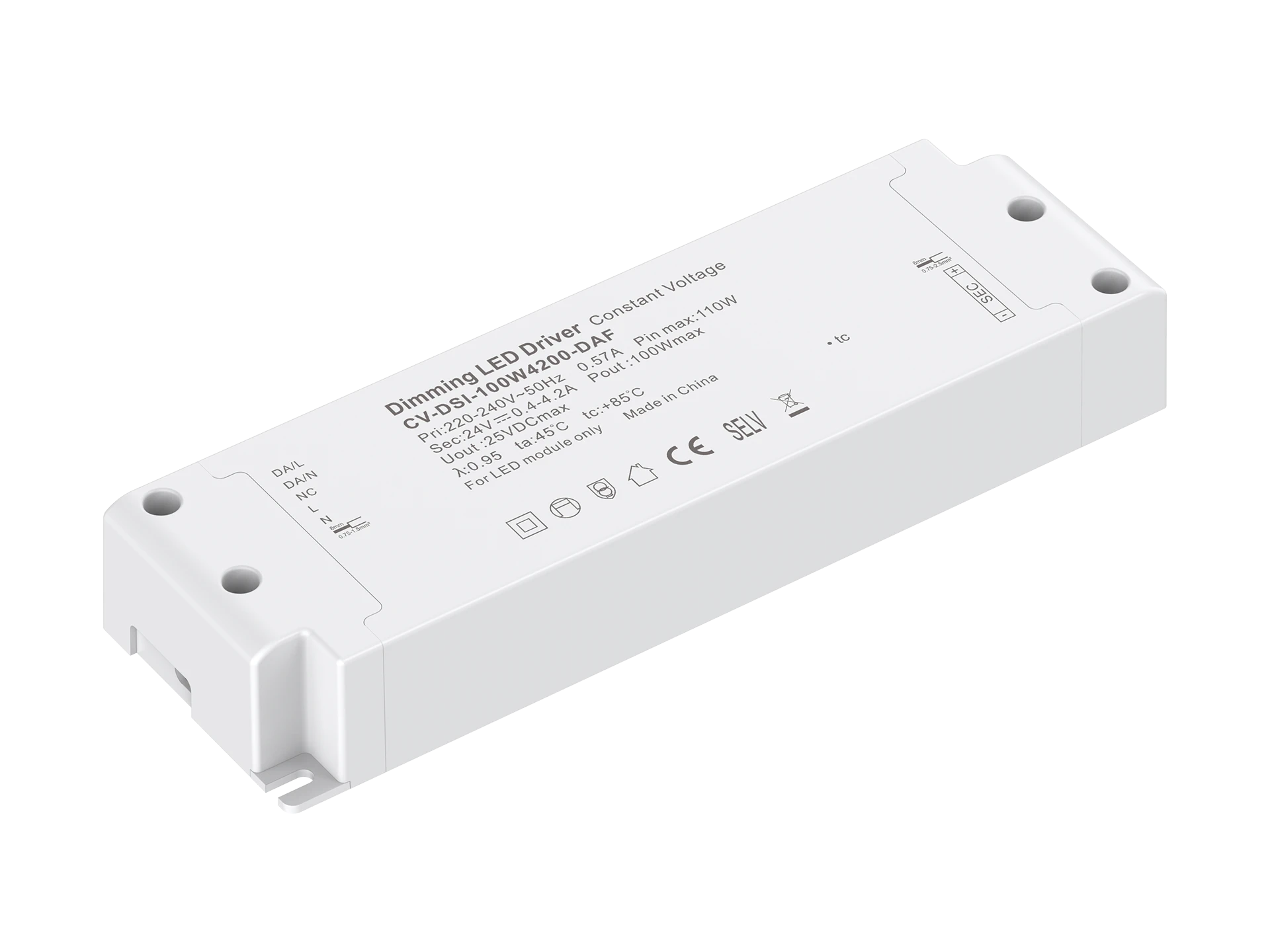

CV DSI 100W4200 DAF
Send Inquiry

Specifications

Code CV-DSI-50W2080-DAF CV-DSI-100W4200-DAF
Input Power 58W Max 110W Max
Input Voltage AC220-240V/50/60Hz AC220-240V/50/60Hz
Output Voltage DC24V DC24V
Output Current 0.2-2.08A 0.4-4.2A
Efficiency ≥88% ≥90%(
Power Factor 0.95 0.95
THD <20% @230V <20% @230V
Flickering Index 1% (NO RISK) 1% (NO RISK)
